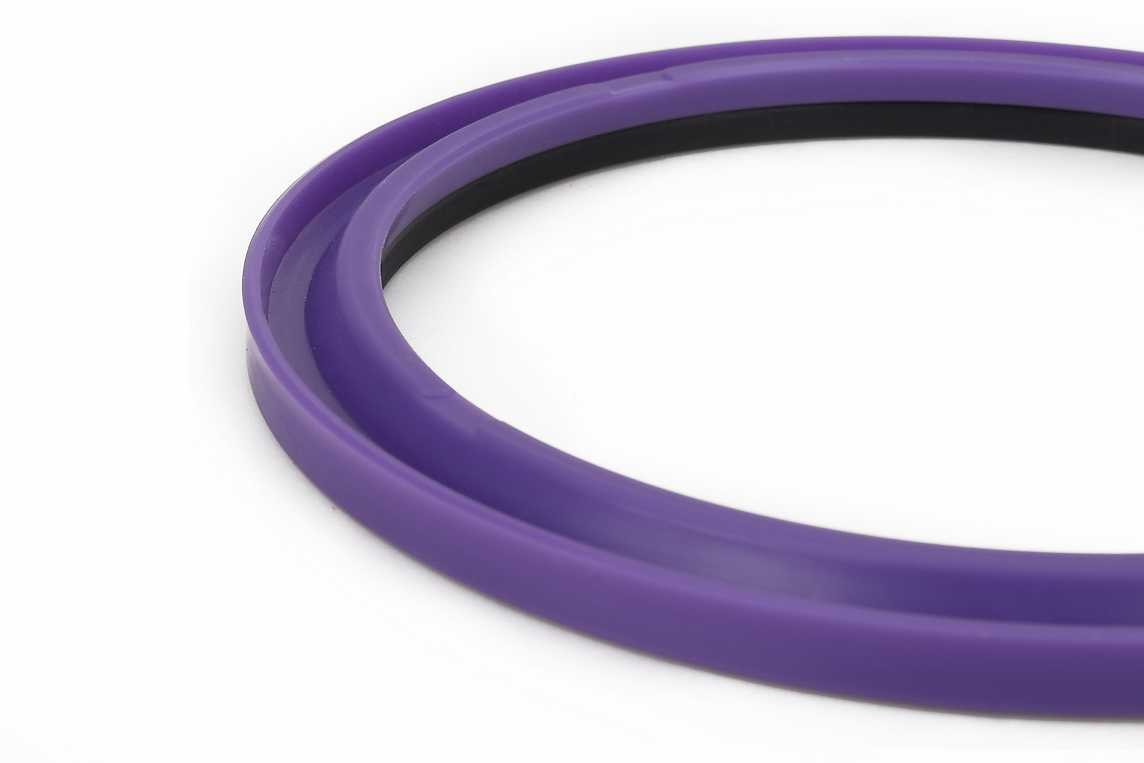

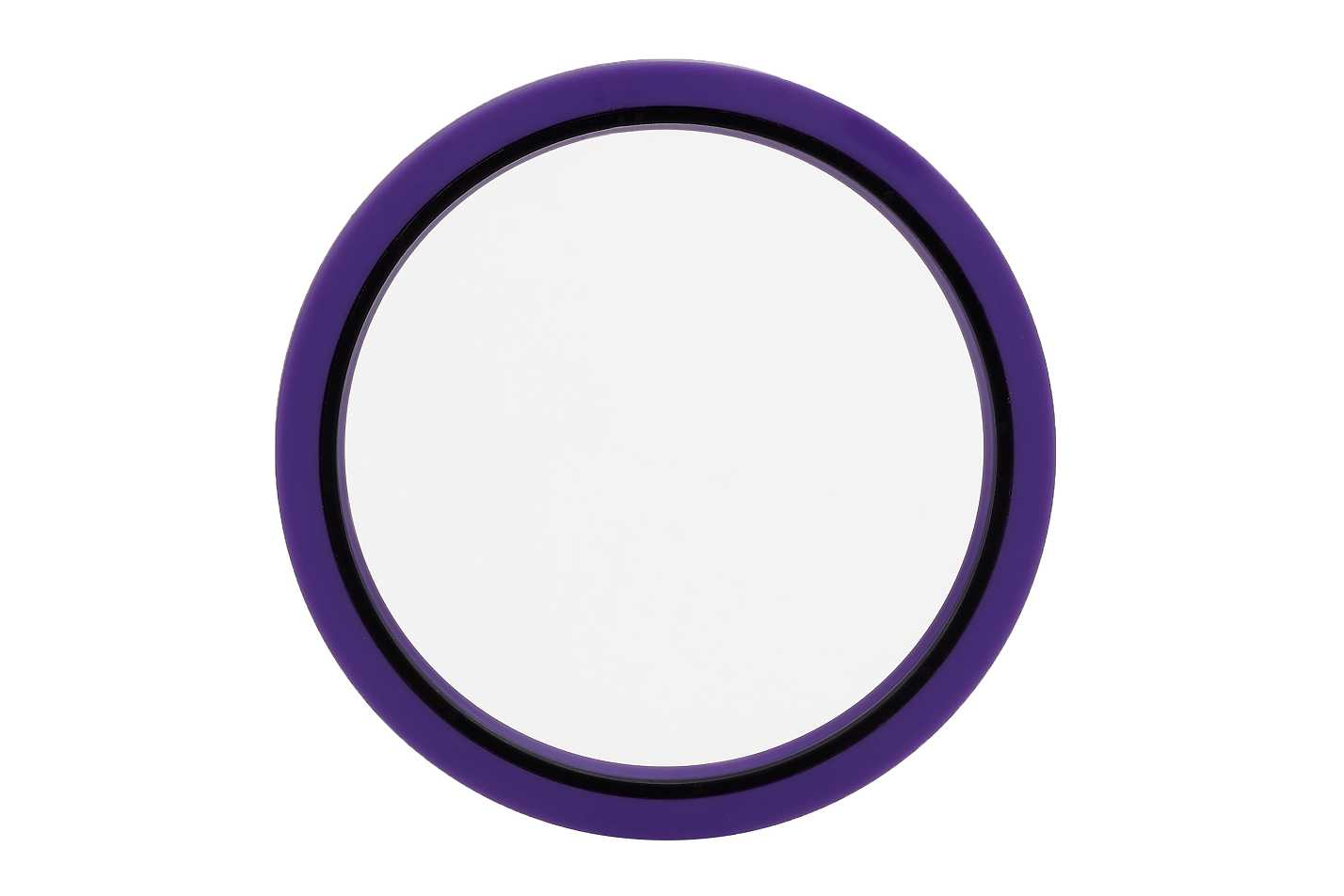

JB-10P

APPLICATION RANGE
Combined with rod seals, to absorb impact and surge pressure under heavy load in order to separate high temperature fluids and improve the service life of the seal element. Applied to maneuvering shovels, wheel loaders, bulldozers, automobile crane, wheel cranes, dump trucks, etc.

STANDARD MATERIALS
Seal ring: PU
Back-up ring: PA

CHARACTERISTICS
The special shape slot film can reduce the pressure between the rod seal and the buffer ring.

 WORKING CONDITIONGS

ELOCITY

PRESSURE RANGE

TEMP.RANGE

MEDIUM

DUANETER RANGE

1m/s

0~50Mpa

-45°C+110°C

Petroleum based hydraulic oil

40-400mm
